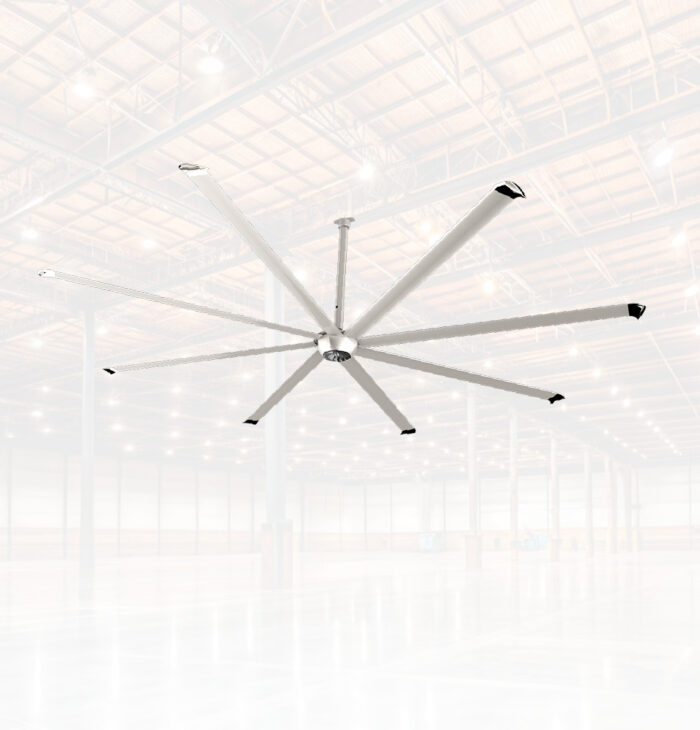

MaxAir – HVLS
HVLS SERIES CEILING FAN, AVIATION ALUMINUM-EXTRUDED ANODIZED (AIRFOIL STYLE), # OF AIRFOILS: 8, 80RPM (VFD CONTROLLER) 3730CMM, 220V 1PH 60HZ MOTOR: BRUSHLESS RARE EARTH, PERMANENT MAGNET SKF EXPLORER REINFORCED, IP20 14FTØ (4.2M)
Application: Gyms, Schools, Manufacturing, Logistics Centers
Benefits
•Comfort and Freshness
•Low Energy Cost
•Reduce risk and better working condition
•Improve air quality
| CATALOG NUMBER | BLADE Ø | SOUND | POWER | WEIGHT | BLADE MAKE | RATED CURRENT (MAX) |
| IND73-3PH | 24 ft. (7.3m) | 50-55 dB | 1.5 kw | 120 kg | Aluminum Alloy | 3.4A |
| IND61-3PH | 20 ft. (6.1m) | 50-55 dB | 1.5 kw | 105 kg | Aluminum Alloy | 3.4A |
| IND42-1PH | 14 ft. (4.2m) | < 43 dB | 410 w | 41 kg | Aluminum Alloy | 2A |
| IND-3-1PH | 10 ft. (3m) | < 43 dB | 0.2 kw | 44 kg | Aluminum Alloy | 1.0A |
