Description
0.6/1kV
Low smoke zero halogen (LSZH) fire resistant cable, 2, 3, 4-cores, XLPE insulated, armoured (steel wire), sheathed
Standards: BS 7846; IEC 60331; BS 6387

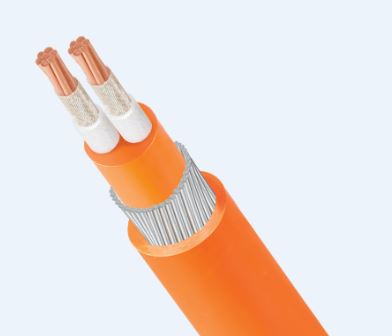

Construction : Cu/Mica/XLPE/LSZH/SWA/LSZH

Conductor : Plain annealed copper (class 2, normal stranded or compact stranded)

• Fire barrier: Mica tape
• Insulation: XLPE
• Filler, binder and inner covering: PP, PET, LSZH
• Armour: Steel wire
• Outer sheath: LSZH

Cable identification

Cores : by color tape
Outer sheath : orange or as order

Characteristics

• Voltage rate : 0.6/1kV
• Maximum conductor temperature : 900C in normal operation; 2500C in short-circuit for 5s max.
• Minimum bend radius : 12xD (twelve times overall diamerter of cable)
• Fire resistant : IEC 60331; BS 6387
• Flame retardant : BS EN 60332-1; IEC 60332-1
• Corrosive and acid gas : BS 7846; BS 50267-2-1; IEC 60754-1&2
• Smoke emission : BS 7846; BS EN 50268-2; IEC 61034-2

APPLICATION

• Gas station, elevator, tunnel
• Airfield, building, apartment
• Public place
• Fire alarm systems, lighting security systems,
• System of fire extinguishing electric pumps…
• Standard: IEC 60331 IEC 60332 BS 6387, BS 7211…
• Voltage level up to 0.6/1 kV
