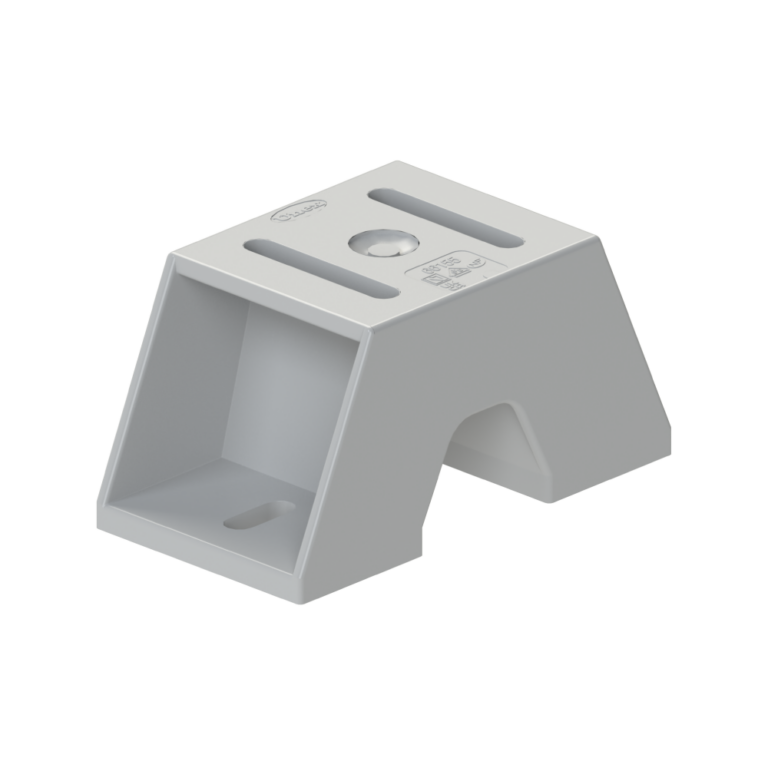

To fix cable trays vertically to the wall.
Fixing of the cable tray to the vertical support: use metallic bolts.
Fixing of the support to the wall: use metal screws Ø8.
Colour: grey RAL7035.
Insulating material.
Safety: electrical, mechanical and against fire.
Easy and quick mounting.
Just one piece: more safety.
Variable-angle level changing.
Can be used up to +90º and -90º of inclination.
Colour: grey RAL7035.
Insulating material.
Safe, easy and quick mounting.
Changing direction 45º.
Each item includes right and left pieces.
Colour: grey RAL7035.
Insulating material.
Stability assured.
Easy mounting, just like junctions.

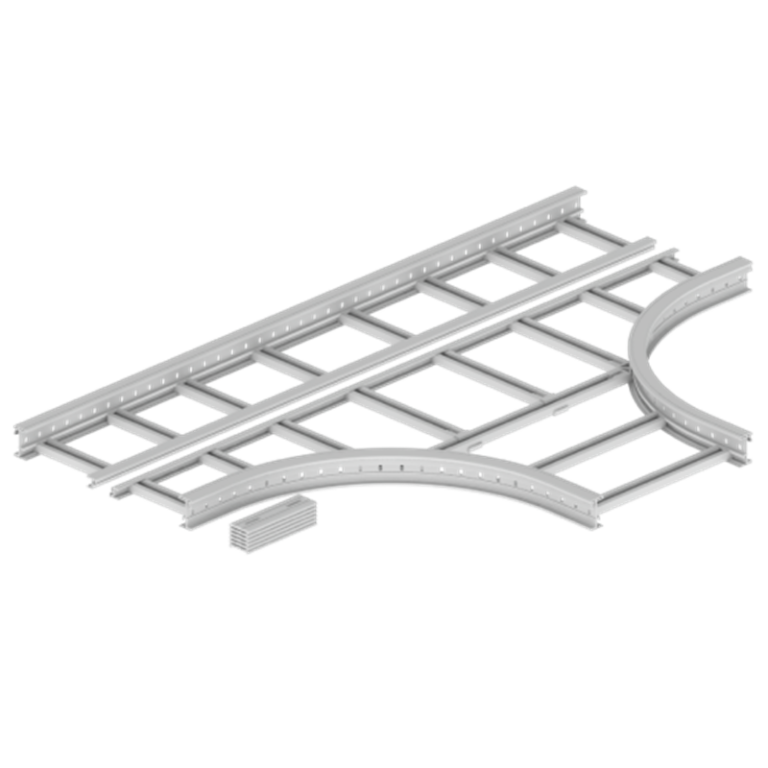

Item to make derivations at 90 Deg. Bending radius of 600 mm.
Junctions included to facilitate mounting. Insulating material.
Colour: grey RAL 7035
Bolt with the following functions:
-Joining supporting metal parts together.
-Fix cable trays 66 to insulating vertical and horizontal supports in U23X when you want to use the insulating bolts and nuts protector 66819 as an alternative to the metal bolts 66839-A4.
-Fix junctions, hinges and dividers to Cable trays 66 and Cable ladders 67 when you want to use the insulating bolts and nuts protector 66819 as an alternative to the metal bolts 66839-A4.
For installations subject to vibration, metal screws with self-locking nuts must be used.
Safety, ease and fast assembly.
Resistance to corrosion Class 9B acc./EN 61537.
Colour: Grey.
To cover Semi T.
Colour: grey RAL7035.
Insulating material.
Quick and easy mounting.
4 SST screws are included for optional cover fixing.
Hides the cut marks of both cable tray and cover, adding quality finish to the installation.
It allows the elevation and retention of the cable ladder´s cover in case of possible impacts or effects of the weather (wind…) and at the same time maintains a good ventilation of the cables.
Insulating material, halogen free.
Safe, easy and quick mounting.
Halogen-free product made of 100% recycled thermoplastic component.
To join cable tray parts (DIN 603 M 8×20 ISO 8677).
Never use this screw to fix the cable tray to a vertical support.
In installations subject to vibration, metal screws with blocking nuts must be used.
Colour: grey RAL7035.
Insulating material.
Safe, easy and quick mounting.
Join Cable trays 66 and Cable ladders 67 to insulating strut channels or metal strut channel BS 6946.
Join insulating horizontal supports in U48X to insulating strut channels or metal strut channel BS 6946.
Join Cable trays 66 and Cable ladders 67 to rooftop supports.
Resistance to corrosion Class 6 acc./EN 61537.
Safety, ease and fast assembly.
Colour: Grey.
To join cable tray lengths.
2 Insulating bolt Art. No. 66832-44 are included.
In areas submitted to temperature changes (i.e. Outdoor applications), the use of junctions is recommended in order to avoid the possible warping.
Colour: grey RAL7035.
Insulating material.
Very strong.
Absorbing expansion.
