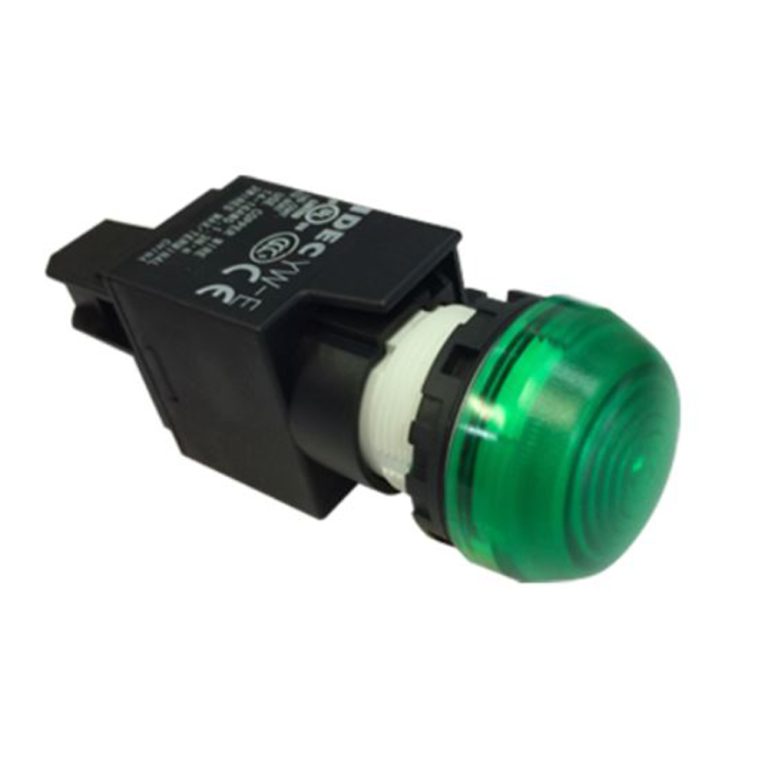

IDEC – Pilot Light(LED)
DESCRIPTION
IDEC pilot light(LED) – 22mmØ YW Series, Dome Full Voltage, 24VAC/DC, green

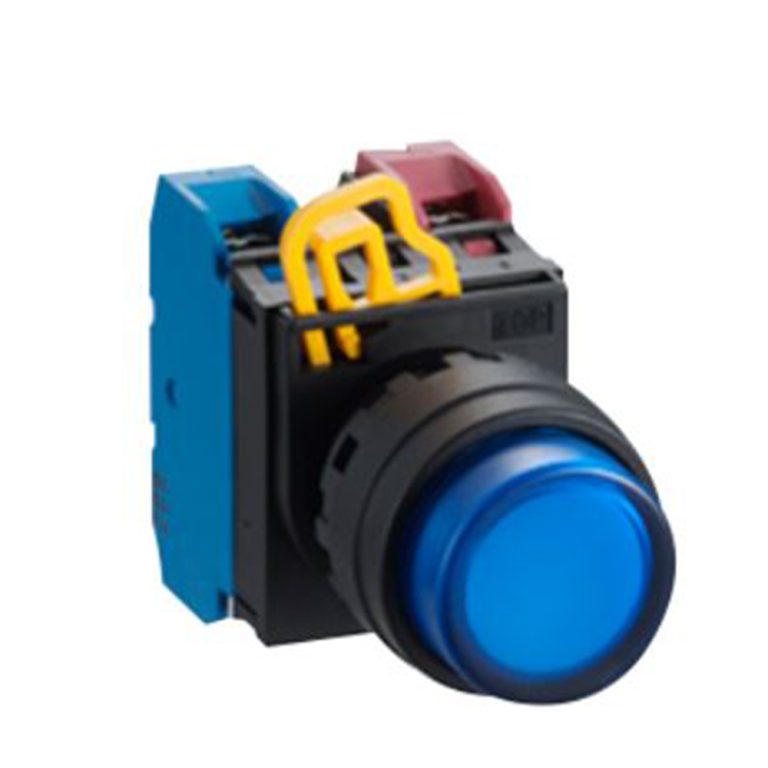

IDEC – YW Series Illuminated Push Button
DESCRIPTION
From miniature pilot lights and industrial switches that mount into 8mm panel cut outs through full size industrial switches that mount into 30mm cutouts, we have an industrial switch or indicator for almost any application. Terminations include solder / quick connect terminals, screw terminals, or PC board pins for direct board mounting. Miniature models use snap action gold plated contacts for superior low level switching, whereas larger models use slow-make, double break contacts for switching heavier loads, up to 10A.
Compact and light-weight
Finger-safe screw terminals
22MM YW Series Illuminated Pushbuttons (Plastic Bezel) Momentary Mushroom LED

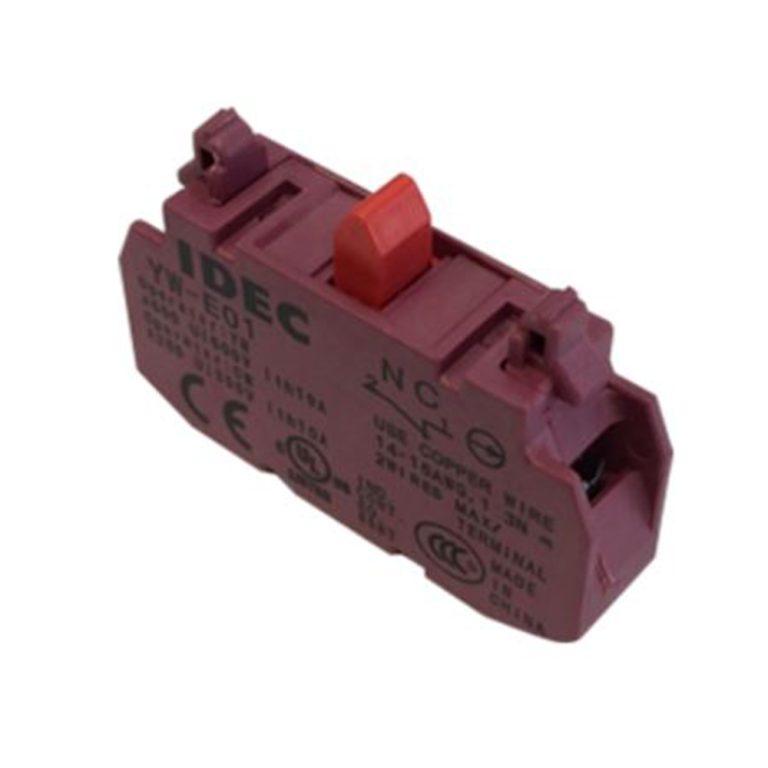

IDEC – IDEC Contact Block, YW Series, 1NC Model# YW-E01
DESCRIPTION
IDEC Contact Block – 22mmØ YW Series, 1NC, Screw Terminal.

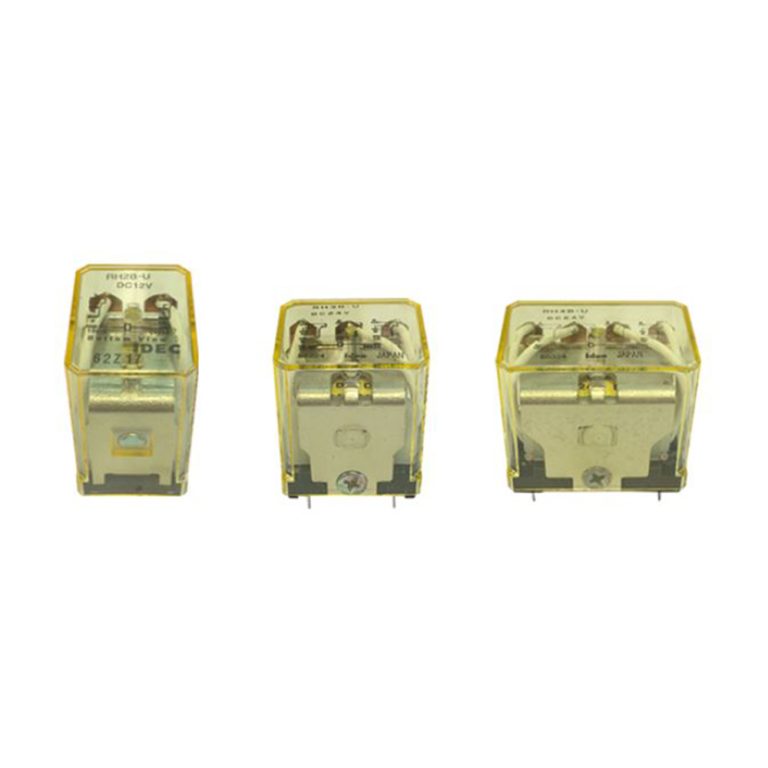

IDEC – RH Power Relay
DESCRIPTION
Featuring the same contact ratings as the larger RR series, the RH series uses silver cadmium oxide contacts to help reduce voltage arcing. Available in 1 to 4 poles, with either .187 blade plug-in or PCB terminals, the RH series is known for going the distance. Options include manual check buttons, LED indicators, and top flange covers for direct surface mounting. All models carry worldwide approvals including UL, CSA, TUV and CE. Using a standard terminal arrangement, the RH series will plug into many competitors’ sockets. In fact, since we private label sockets for so many companies, there is a good chance that the socket you are using was designed specifically for RH series relays.
• Compact midget size saves space
• SPDT, DPDT, 3PDT, or 4PDT AgCdO contacts
• Choice of Plug-In or PCB type terminals
• Options include indicator light and check button
• Mounting options include top mounting, DIN socket, or panel mount socket

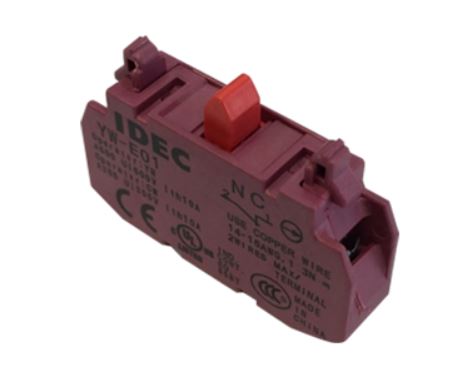

IDEC Contact Block, YW Series, 1NC Model# YW-E01
DESCRIPTION
IDEC Contact Block – 22mmØ YW Series, 1NC, Screw Terminals
IDEC Timer Electronic On-Delay, SPDT, 12VDC, 10 SEC Model# GT5P-N10SD12
DESCRIPTION
TIMER – ELECTRONIC ON-DELAY, SPDT, 12VDC, 10 SEC
- SPDT 5A contacts
- 8-pin octal base
- 9 time ranges
- Repeat error ±0.2% maximum
- Control settings by hand or screwdriver
- Power ON and timing out LED indicators
- Uses the same sockets and hold down clips as IDEC’s RR2P 8-pin relays

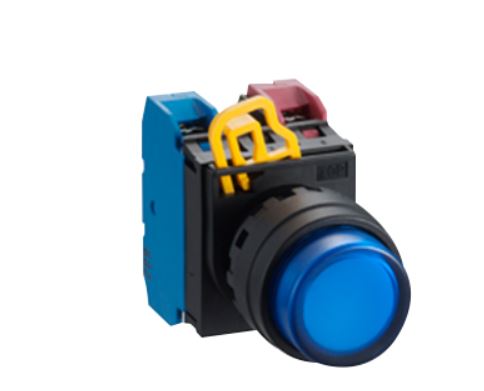

IDEC YW Series Illuminated Push Button
DESCRIPTION
From miniature pilot lights and industrial switches that mount into 8mm panel cut outs through full size industrial switches that mount into 30mm cutouts, we have an industrial switch or indicator for almost any application. Terminations include solder / quick connect terminals, screw terminals, or PC board pins for direct board mounting. Miniature models use snap action gold plated contacts for superior low level switching, whereas larger models use slow-make, double break contacts for switching heavier loads, up to 10A.
- Compact and light-weight
- Finger-safe screw terminals
- 22MM YW Series Illuminated Pushbuttons (Plastic Bezel) Momentary Mushroom LED

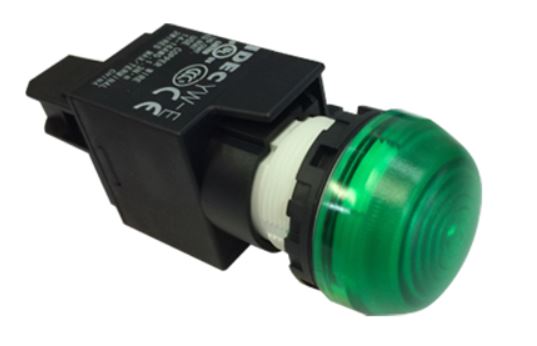

IDEC Pilot Light(LED)
DESCRIPTION
IDEC pilot light(LED) – 22mmØ YW Series, Dome Full Voltage, 24VAC/DC, green

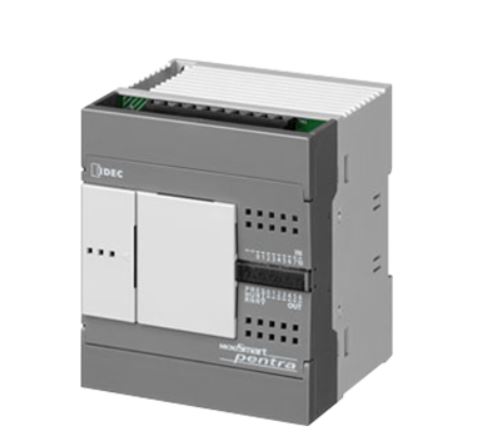

Programmable Logic Controller
DESCRIPTION
IDEC brought some of the first micro-Programmable Logic Controllers to the market, and has been meeting your changing control automation needs for decades. Our controllers meet the highest standards for safety, flexibility and value. Whether it is system flexibility, space saving, ease of maintenance or powerful programming features, IDEC’s programmable logic controllers along with exceptional product support will exceed your expectations.
FL1F SmartRelay
DESCRIPTION
This compact and powerful SmartRelay now equipped with features that comparable to a micro PLC. Standard features such as universal voltage, built-in analog inputs, real time clock, 10 Amp relays outputs, that imprinted with IDEC SmartRelay, now we’ve even added more features: Ethernet port, micro SD port, Networking, Web Server functions, iOS and Android Apps support, Modbus TCP Client/Server, Access Tool for Microsoft Excel, Web Page Editor, and the ability to support -10 to 55 degree C operating temperature.
The new FL1F SmartRelay CPU base module comes standard with embedded RJ45 Ethernet port. Program can be remotely monitor, download and upload using this port. Special programming cable is no longer required. Using standard web browser, users can easily monitor and control the SmartRelay. Program storage and transfer is never easier with the embedded Micro SD port. Special memory cartridge is no longer required. This makes it easier for OEM to update and manage programs. Data logging is also supported. Need to monitor and control the SmartRelay from a smart phone and tablet? No problem. A new SmartRelay Apps will be available in December for all iOS and Android devices. Additional enhancements including ability to network up to 16 SmartRelay over Ethernet network, an improved LCD display, and improved Real Time Clock backup with up to 480 hours.
Up to 60 I/Os can now be configured with the new digital and analog expansion modules. These new expansion modules are not compatible with the previous SmartRelay models.
A new and improved Text Display Panel is also available for applications that require visual interface. Up to 6 lines and 20 character lines (which is more than twice compared to previous models) can be configured.
- Embedded RJ45 Ethernet Port
- Micro SD Card
- Data Logging
- Integrated Web Server
- iOS and Android App available
- Modbus TCP Client/Server
- Direct Comm. with Excel
- Web Page Editor
- -20 to 55 deg C
