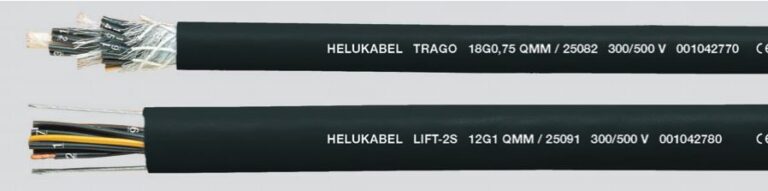

Helukabel TRAGO / Lift-2S

Helukabel TRAGO / Lift-2S

0 Comments
Technical Data  Lift hoist control cables with strain bearing  element .                                                                                                        Special PVC-compound for core and jacket, adapted to DIN VDE 0250
Temperature Range flexing -15 °C to +40 °C
fixed installation -40 °C to +70 °C
Nominal Voltage U0/U 300/500 V
Test Voltage 3000 V
Minimum Bending Radius approx. 20x cable ø
Cable Structure Bare copper, fine wire conductors, bunch stranded to DIN VDE 0295 cl. 6, BS 6360 cl. 6 and IEC 60228 cl. 6                                                                                          Special PVC core insulation, YI3 to  DIN VDE 0207 part 4                                                                                                                                    Core coding to DIN VDE 0293
Green-yellow earth core
Test Voltage 3000 V
Application These cables are used as control or feeder cables in lifts and hoists. The special attention given to both production and material quality for
these cables has made them ideal even for use under extreme conditions.
HELUKABEL®-Lift-2S has also proven itself to be ideally suited for installation in conveyor systems and manual control units.
The external steel support wires can be dismounted without damaging the cable insulation.
= The product is conformed with the EC Low-Voltage Directive 2006/95/EG.



Helukabel HELUPOWER® 1000 RV-K

Helukabel HELUPOWER® 1000 RV-K

0 Comments
Technical Data PVC connection cable, acc. to UNE 21123-2; articles with 3+1/2 conductors: in alignment with UNE 21123-2
direct burial
XLPE core insulation / 90°C
Test flame-retardant acc. to DIN VDE 0482-332-1-2 / DIN EN 60332-1-2 / IEC 60332-1-2
UV-resistant acc. to DIN VDE 0276-605 / HD 605 S2
Cable Structure Copper wire bare, finely stranded acc. to DIN VDE 0295 Class 5 / IEC 60228 Class 5
Core insulation: XLPE acc. to UNE-HD 603-1 (compound type DIX 3)
Core identification: see datasheet
G = with protective conductor GN-YE, in the outer layer,
x = without protective conductor
Cores stranded in layers with optimal lay lengths
Outer sheath: PVC acc. to UNE HD 603-1 (compound type DMV 18)
Sheath colour: black
Length marking: in metres
Application Suitable for use in dry, moist and wet rooms as well as outdoors. Also suitable for direct burial, laying in tubes and underground installation areas. Typical application areas range from general production machinery, to machine tool applications, conveyor belt systems, air-conditioning units, steel plants installations and factory automation. Ideal as power or control cable especially if increased temperature and/or voltage is required. UV resistant due to it’s special PVC outer sheath compound and therefore also ideal as power connection cable for outdoor devices and machinery. Alternatively also for use as power connection cable in the stage and lighting industry or renewable energy sector.
Helukabel Helusound® 600 FRNC

Helukabel Helusound® 600 FRNC

0 Comments
Cable Structure Conductor material: Copper, bare
Core insulation: FRNC
Core colours: rd, bk
Stranding element: pairs stranded
Sheath material: FRNC
Cable external diameter: approx. 6,6 mm
Sheath colour: black
Application The safe solution for increasing demands on the security in case of fire, as flame retardant, low smoke, halogen-free, no corrosion damage by released
gases and fumes, no flame propagation provide for local flame propagation for the integrity of important systems.



Helukabel Helulight

Helukabel Helulight

0 Comments
Cable Structure Type DMX cables
Cable structure (1x2x0,24)+2×1,0
Conductor material: Copper, bare
Core insulation: Foam-Skin-PE (DMX), PVC (Power)
Core colours: red, white (DMX); yellow, green (Power)
Stranding element: 2 cores with 1 filler
Sheath material: PVC soft
Cable external diameter: approx. 7,4 mm
Sheath colour: black matt
Application The hybrid DMX Power cable is used in the professional DMX light controller. It transmits power for the light and control signals for the movement.
The cable is compact, flexible and easy to process.

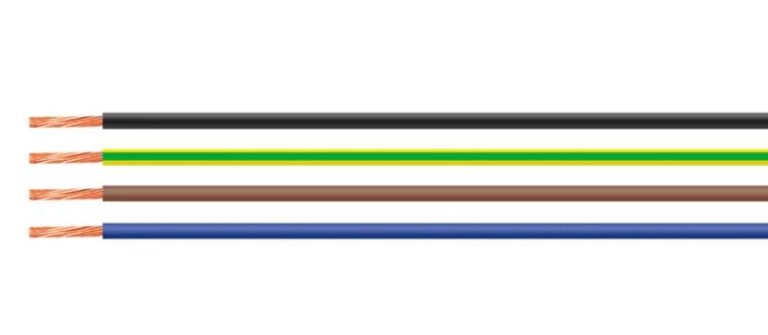

Helukabel – H05V-K

Helukabel – H05V-K

0 Comments

Technical Data
PVC single cores to DIN VDE 0285-525-2-31 /
DIN EN 50525-2-31 and IEC 60227-3

Temperature Range
• flexible +5°C to +70°C
• fixed -30°C to +80°C

Nominal Voltage
AC U0/U 450/750 V

Test Voltage
2500 V

Minimum Bending Radius:
• fixed
• <8 mm: 4x Outer-ø
• 8-12 mm: 5x Outer-ø
• >12 mm: 6x Outer-ø

Cable Structure
• Copper wire bare, finely stranded acc. to DIN VDE 0295 Class 5 / IEC 60228 Class 5
• Core insulation: PVC acc. to DIN VDE 0207-363-3 / DIN EN 50363-3 (compound type TI1)
• Core identification: see datasheet

Test
• flame-retardant acc. to DIN VDE 0482-332-1-2 / DIN EN 60332-1-2 / IEC 60332-1-2
• certifications and approvals:
• H05V-K: HAR
• H05V-K: EAC

Application
Installation in electrical conduits, on or under plaster or similar enclosed systems. Suitable for protected and fixed installation in lighting systems or switching and control devices up to and including 1000 V AC voltage or up to 750 V DC voltage against earth. Not suitable for direct laying in cable ladders and cable trays, except as a potential equalization cable.

Helukabel NSSHÖU heavy dusty rubber cable 0,6/1kV

Helukabel NSSHÖU heavy dusty rubber cable 0,6/1kV

0 Comments
Technical Data Rubber sheath cable to DIN VDE 0250 part 812
Temperature Range flexing -25°C to +80°C
fixed installation -40°C to +80°C
● Resistant against hot penetration
● Core insulation of rubber (EPR)
compound type 3GI3 to
DIN VDE 0207 part 20
● Low abrasion
● High notch resistant
● Permissible operating temperature
at conductor +90°C
Nominal Voltage U0/U 0,6/1 kV
Test Voltage 3000 V
Minimum Bending Radius fixed installation 4x cable Ø
flexing 10x cable Ø
without forced operation 15x cable Ø
Cable Structure Tinned copper-conductor, to
DIN VDE 0295 cl.5, fine-wire,
BS 6360 cl.5, IEC 60228 cl.5
Core insulation of rubber (EPR)
compound type 3GI3 to DIN VDE 0207 part 20
Core identification to DIN VDE 0293-308
– up to 5 cores coloured
– from 6 cores, black with continuous white numbering
GN-YE conductor,  3 cores and above
Cores stranded in layers with optimal lay-length
Test Behaviour in fire to DIN VDE 0482-332-1-2 DIN EN 60332-2-1, IEC 60332-1 (equivalent
DIN VDE 0472 part 804 test method B) Oil resistant to DIN EN 60811-404
Helukabel H07RN-F / 07RN-F

Helukabel H07RN-F / 07RN-F

0 Comments
Technical Data Rubber connection cable, H07RN-F acc. to DIN VDE 0285- 525-2-21 / DIN EN 50525-2-21; 07RN-F in alignment with DIN VDE 0285-525-2-21 / DIN EN 50525-2-21
Temperature Range flexible -25°C to +60°C
fixed -30°C to +60°C
Nominal Voltage AC U0/U 450/750 V
Test Voltage 2500 V
Minimum Bending Radius fixed 4x Outer-Ø
flexible, guidance via roles 7.5x
Outer-Ø
flexible, winding on drums 5x
Outer-Ø
Cable Structure • Copper wire bare, finely stranded acc. to DIN VDE 0295 Class 5 /
IEC 60228 Class 5
• Core insulation: rubber acc. to DIN VDE 0207-363-1 /
DIN EN 50363-1 (compound type EI4)
• Core identification acc. to DIN VDE 0293-308,
1 core(s): black
2 – 5 core(s): colour coded
7 – 37 core(s): black cores with consecutive labeling in white digits
• Protective conductor: starting with 3 cores,
G = with protective conductor GN-YE, in the outer layer,
x = without protective conductor
• Cores stranded in layers with optimal lay lengths
• Outer sheath: rubber acc. to DIN VDE 0207-363-2-1 /
DIN EN 50363-2-1 (compound type EM2)
• Sheath colour: blac
Test • flame-retardant acc. to DIN VDE 0482-332-1-2 / DIN EN 60332-
1-2 / IEC 60332-1-2
• oil-resistant acc. to DIN VDE 0473-811-404 / DIN EN 60811-404
/ IEC 60811-404
• certifications and approvals:
H07RN-F: HAR
EAC
Application Heavy duty, rubber sheathed cable for use with medium mechanical
stress in dry, damp, wet rooms, in agricultural premises and outdoors. Suitable for equipment in commercial operations, e.g. heating
plates, hand lamps, electric tools such as drills or circular saws. For
fixed installation on plaster as well as in temporary constructions. When installed in pipes or similar enclosed systems, the use of
the cable is permitted up to and including 1000 V AC voltage or up to
750 V DC voltage against earth.



Helukabel HELUPOWER® AQUATIC-750-BLUE

Helukabel HELUPOWER® AQUATIC-750-BLUE

0 Comments
Technical Data Special cable in reference to
DIN VDE 0250 / DIN VDE 0285-525-1 /
DIN EN 50525-1
Temperature Range flexing  -25°C  to  +50°C
fixed installation  -40°C  to  +80°C
Nominal Voltage U0/U 450/750 V
Test Voltage 2,5 kV
Minimum Bending Radius fixed installation 5x outer Ø
Cable Structure Bare copper conductor,
fine wire acc. to
DIN VDE 0295 cl.5 / IEC 60228 cl.5                                                                                                                                                                                                     Core insulation of PVC
Core identification  acc. to DIN VDE 0293-308
1 core: black
≤ 5 cores: coloured                                                                                                                                                                                                                                                      GN-YE conductor, 3 cores and above                                                                                                                                                                                                                Outer sheath of cross-linked special compound                                                                                                                                                                                                       Sheath colour: blue (RAL 5015)
Application Useful for average mechanical stresses in continuously submerging pump lines for drinking and utility water, with a maximum immersion depth of
600 m. Useful as a connection cable in processing plants in the food and beverage industry, as well as fishponds and aquariums.
= Product conforms with Low-Voltage Directive 2014/35/EU.
Helukabel Insulated Grounding Cable

Helukabel Insulated Grounding Cable

0 Comments
Description  Class 5 bare Cu-conductor (IEC 60228)
Very Flexible; minimal bending radius
Available in different electrical primary color
Special TI1 PVC insulation
Flame retardant per IEC 60332-1
≈10 MOhm x km insulation resistance
Nominal voltage up to 1000V
750V direct current against earth
Harmonized CE approved product conformed with EC
low voltage directive 2006/95/EC
100mtr/box available for size ≤10mm²
High ambient temperature compare to other local type
•GN-YE grounding conductor is also available

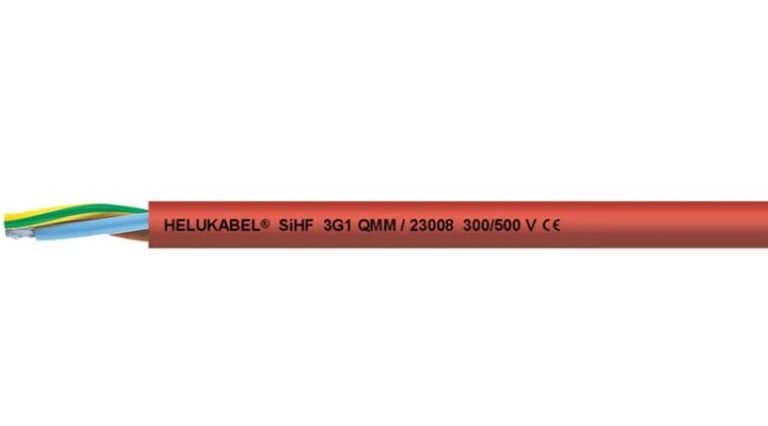

Helukabel SiHF

Helukabel SiHF

0 Comments
Description Silicone cable
increased temperature resistance
tinned wire
Cable Structure Copper wire tinned, finely stranded acc. to DIN VDE 0295 Class 5 / IEC 60228 Class 5
Core insulation: silicone
Core identification acc. to DIN VDE 0293-308,
2 – 5 core(s): colour coded
6 – 25 core(s): black cores with consecutive labeling in white digits
Protective conductor: starting with 3 cores,
G = with protective conductor GN-YE, in the outer layer,
x = without protective conductor
Cores stranded in layers with optimal lay lengths
Outer sheath: silicone
Sheath colour: redbrown
Length marking: in metres
Test halogen-free acc. to DIN VDE 0482-754-1 / DIN EN 60754-1 / IEC 60754-1
corrosiveness of combustion gases acc. to DIN VDE 0482-754-2 / DIN EN 60754-2 / IEC 60754-2
flame-retardant acc. to DIN VDE 0482-332-1-2 / DIN EN 60332-1-2 / IEC 60332-1-2
certifications and approvals:
EAC
Application Silicone cables were evolved for use wherever insulation is subjected to extreme temperature changes. The good performance of the environmental resistant properties means that silicone cables can be used at temperatures down to -60°C. Silicone cables are halogen-free cables and are especially suited for installation in power stations. They have also found their uses in the steel producing industries, aviation industry, ship building as well as in ceramic, glass and cement factories. Due to elastical characteristic of core insulations, these are used as flexible connection cable
