CONDUCTOR
Stranded copper conductor 1.0-300 mm², IEC 60228 class 5
INSULATION
XPLE plastic
BEDDING
Non-woven separator tape
SHEATH
• Polyurethane compound
• Standard colour black, other colours on request
RATED VOLTAGE
• AC 0.6/1 kV (1.2 kV)
• DC 0.9/1.5 kV (if voltage to earth does not exceed 0.9 kV)

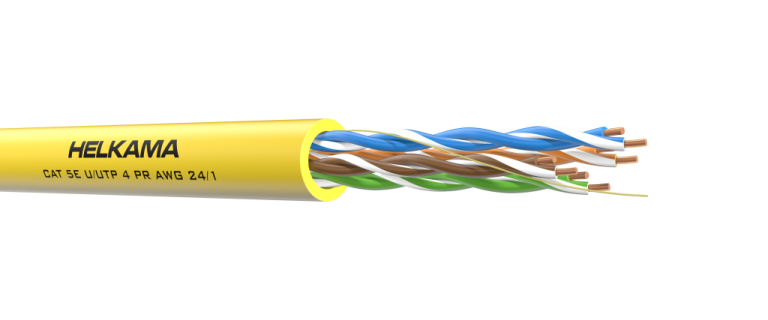

Conductor
Solid copper conductor 24 AWG/1
INSULATION : Solid PE
FIRE PERFORMANCE : Dca s2, d2, a1 IEC 60332-3-24
MAX. CONDUCTOR RESISTANCE (DC) : 93.8 Ω∕km @ 20 °C
MAX. CONDUCTOR RESISTANCE (LOOP) (PAIR, MAX 20 °C) (OHM/KM) : max. 19Ω/100m @20 °C
NOM. MUTUAL CAPACITANCE (NF/KM) : nom. 5.6 nF/100 m
CAPACITANCE UNBALANCE PAIR TO GROUND : ≤330 pF/km @1kHz
MIN. INSULATION RESISTANCE (20 °C) : max. 5000 MΩxkm
CHARACTERISTIC IMPEDANCE : 100±25Ω@100 MHz
RATED TEMPERATURE : 75 °C
OPERATING TEMPERATURE : -20 – 75 °C
