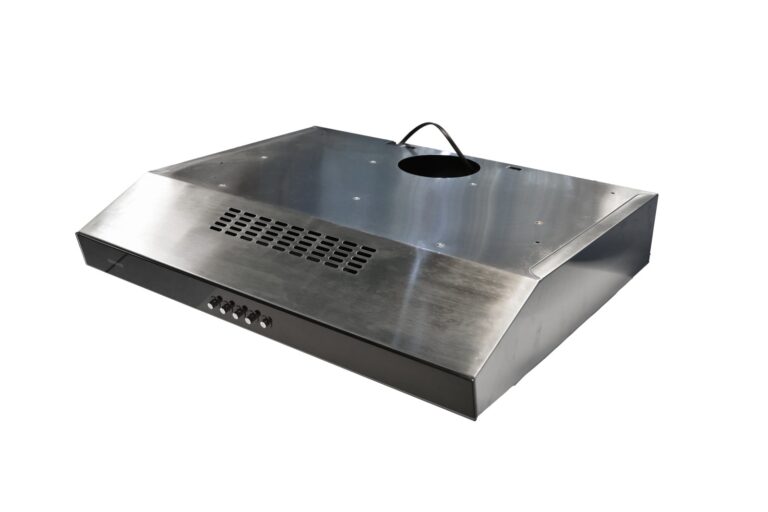

Broan Under Cabinet Rangehood
Front Recirculation
3 Speeds Push Button
Beautiful LED Strips
430#SS Finish
Al. Filters
220V/60Hz
Broan X8
Multiple Filters incl. Metal Pre Filter + G4 + F7 Filters
H13 HEPA Filter with anti-bacterial & anti-viral coating
PM2.5 and CO2 Sensors
Temp & RH Sensors
Suitable for room size up to 260 m2 (1ACH)
LCD Clear Colored Display
Mobile App Remote Control
Energy Recovery Unit
Fresh Air
Recirculation
Exhaust
5 modes of operation
Air Flow: 800 m3/h fresh air
Dimensions (cm): 180 x 57 x 46.4
Weight (kg): 98

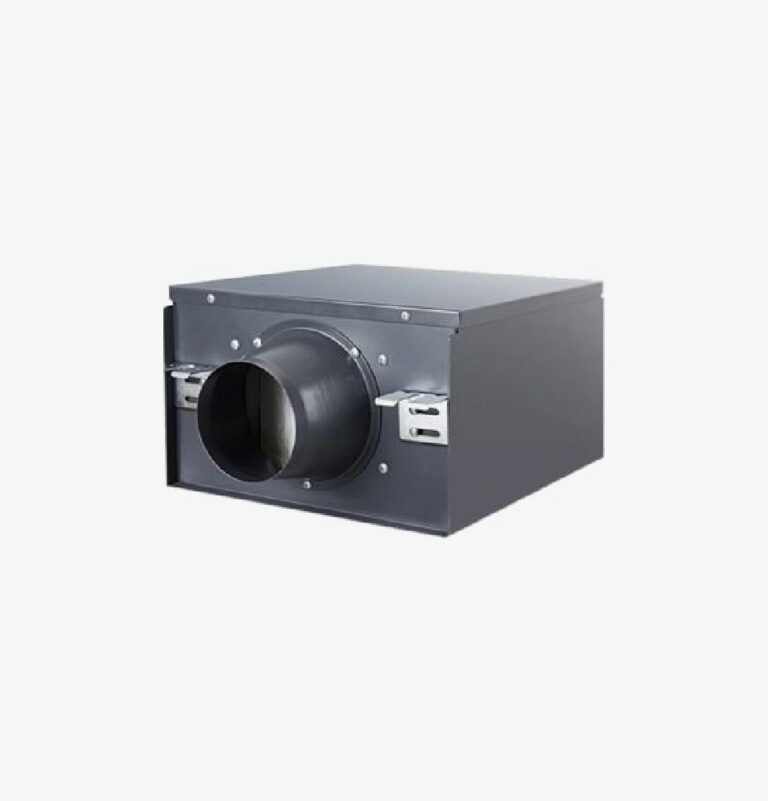

Broan Inline Duct Ventilator
Innovative application of BLDC (brushless direct current) motorsaves as much as 50.9% of energy BLDC motor reduce motor coil heating enabling…
Broan Surface Mount Solar Powered Attic Ventilators
Automatic Shutoff No
Built-In Timer No
cUL Listed No
Dome Material ABS
ENERGY STAR® certified No
ETL Listed No
Fan Blade 5 Blade Aluminum
HVI Certified No
Insect/Critter Screen Yes
Installation Type Surface Mount
UL Listed No
CFM 537
Color
Black
Dome Dimensions 26-5/8″ x 29-7/8″
Dome Height From Roof 9
Power Type Solar
Roof Opening – Width 14″ Diameter
Solar Panel Makeup Polycrystalline Silicon
Solar Panel Watts 28
Sound Level (Sones) 0
Housing Dimensions 25-1/2″ x 25-1/2″
Motor DC Variable Voltage
Manufacturer Warranty 1 Year
Motor Engineered For Continuous Operation No
High Efficiency Luminaire No

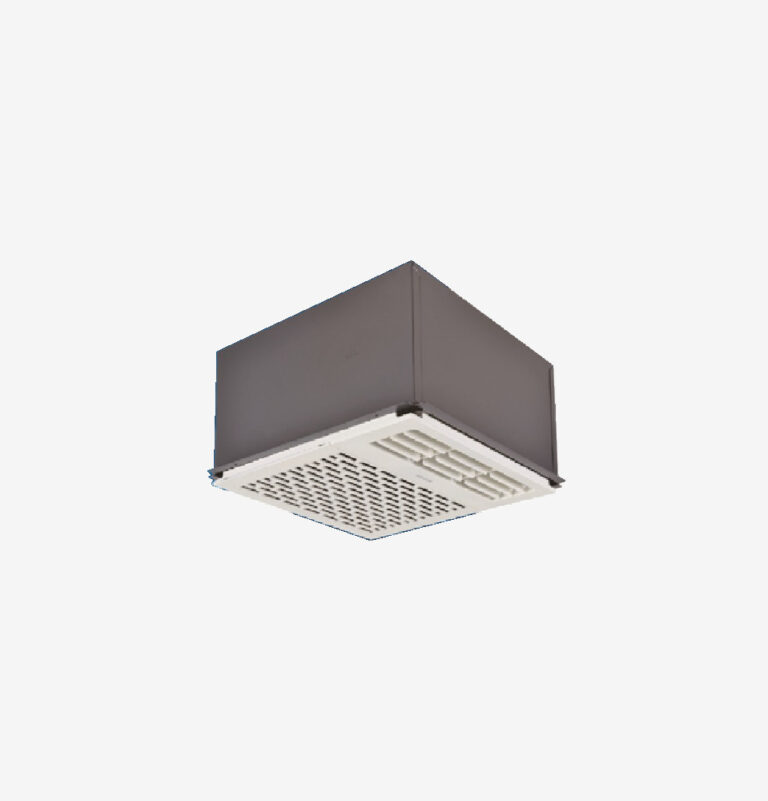

Broan Duct Free Fan
ENERGY STAR® certified No
Grille Length 8.5
Grille Width 8.5
Housing Dimensions 7-1/8″ x 7-1/8″ x 3-3/4″
Sound Level (Sones) 0
UL Listed Yes
Grille Finish White
Humidity Sensing No
Motion Sensing No
Motor Engineered For Continuous Operation No
Night Light No
Radiation Damper Available No
Room Side Installation No
UL Listed for use over bathtubs or showers when connected to a GFCI circuit No
Heater Wattage 0
Rated Amps 1
Voltage 120
Can Be Used To Comply With Title 24 No
Minimum Construction Space Required 2″ x 4″
High Efficiency Luminaire No

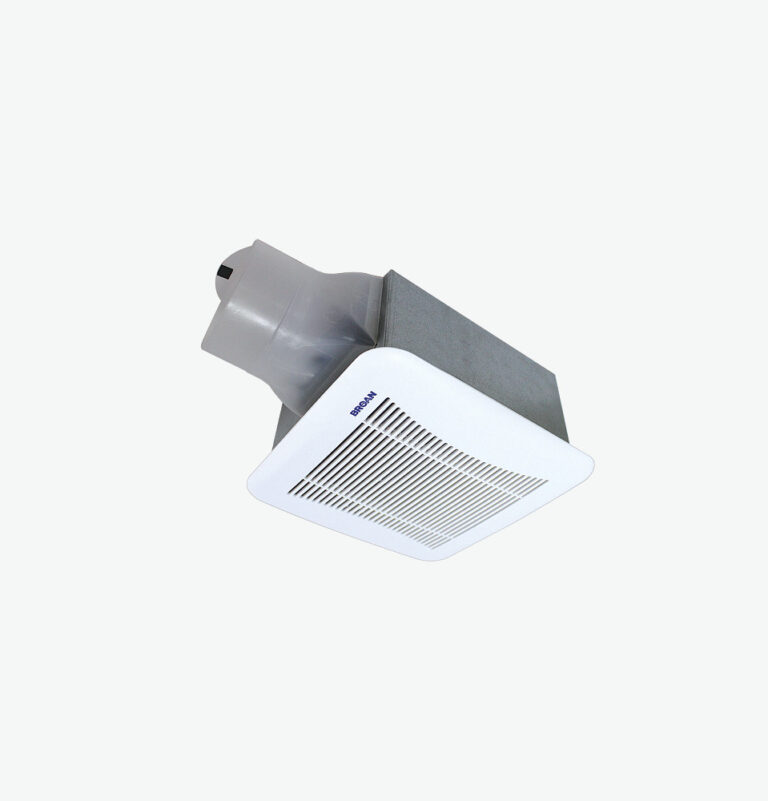

Broan Kinglan Fan
• High efficiency centrifugal fan blower and optimized scroll design delivers 29dB.
• Fleetline white polymeric grille by American designers. Simplicity provides sophistication that will blend into any decor.
• Fully enclosed compact metal galvanized rustproof housing design resists water and corrosion against salt spray test. Provides better resistance against fire for home safety.
• Energy saving and low noise, permanently lubricated ball bearing motor. Designed for low-temperature rise, the motor is safe and engineered for continuous operation.
• Built-in damper prevents air backdrafts or water backflow for better ventilation performance and energy efficiency.
• Easy installation and maintenance to all kinds of installation environments.
NOTE:
1. Air flow value is Broan laboratory test results with +/-10% tolerance range.
2. The noise value is A-weighted sound pressure level, it is Broan laboratory test results with +2 -5 tolerance range.
3. The parameters below may be changed without prior notice.

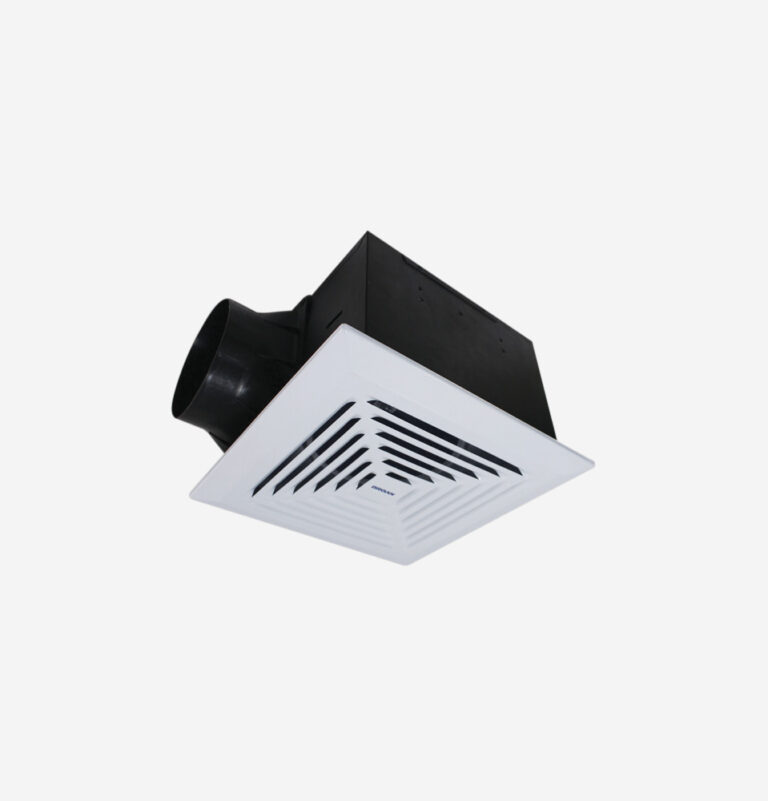

Broan Melan Fan
Melan Fan, classic metal grille processed with white coating. Fully enclosed compact metal galvanized rustproof housing design resists corrosion. Energy saving motor is safe and engineered for continuous operation. Built-in damper prevents backdrafts.

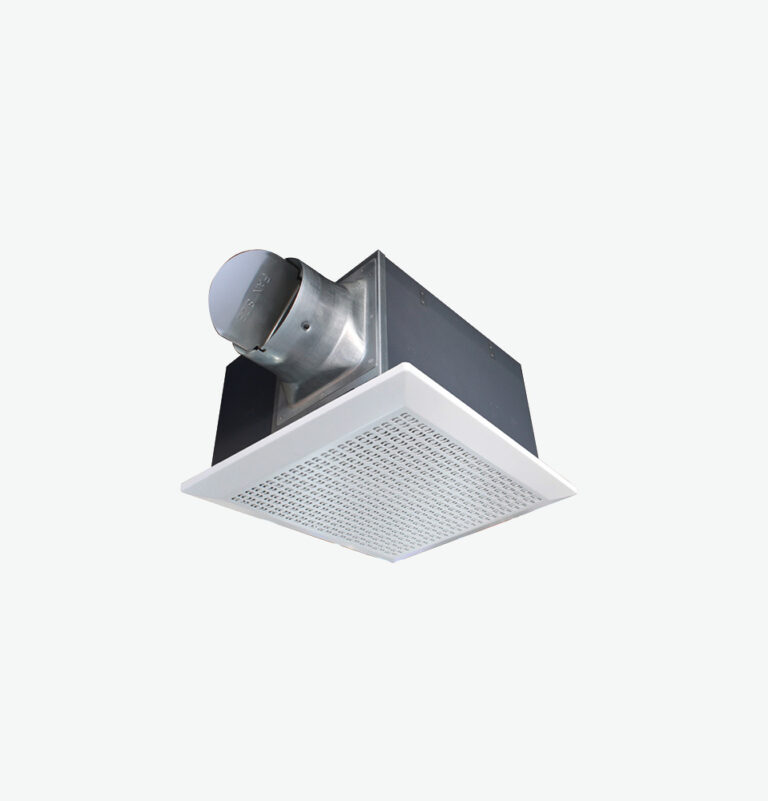

Broan Premium Fan
• Highest CMH levels for best ventilation effectiveness
• Lowest dB levels for environmental comfort
• Highest static pressure performance for long duct runs
• Lowest overall energy consumption to keep electricity bills low
• Painted metal grille for maximum durability
• Painted metal housing for great resistance to corrosion
• High-quality PSC motor and engineered blower wheel for quietest and most powerful performance
• Aluminum duct connector for excellent durability
• Easy to install

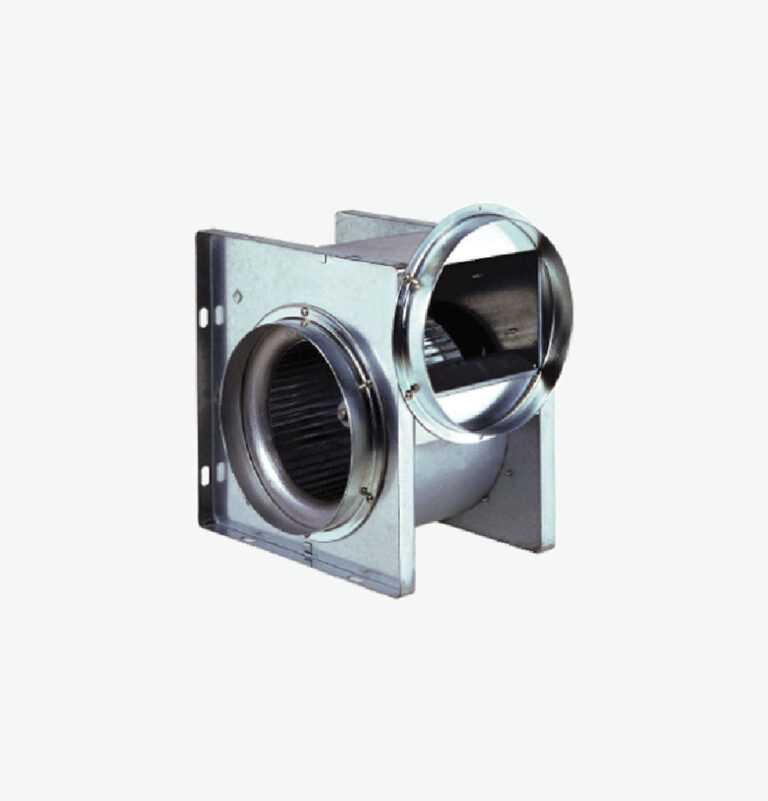

Broan Sirocco Fan
• Supply and exhaust Ventilation System
• Galvanized rustproof housing
• Energy efficient & low noise
• Permanently lubricated ball bearing
• The impeller with galvanized forward curved blades
| CATALOG NO. | VOLTAGE | POWER | SOUND | CMH | PRESSURE |
| – | FREQUENCY V/HZ | (W) | (dB) | – | (Pa.) |
| DE-BO33B | 220/60Hz | 37 | 37 | 300 | 130 |
| DE-CO50B | 220/60Hz | 70 | 45 | 480 | 215 |

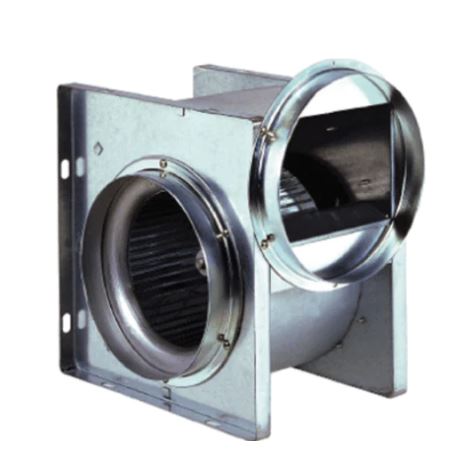

Broan Model# DE-B033B
DESCRIPTION
Sirocco Duct Fan, high quality ball-bearing motor and totally enclosed motor housing for excellent durability. Quiet operation and high performance.
36.9W, 37.5dB, 178CFM, 133.83Pa, 220V 60Hz, 150mm duct
